| MOQ: | 1pc |
| Price: | EXW UNIT PRICE US$4150 -US$4200 (Exclude any rotor) |
| Standard Packaging: | plywood case |
| Supply Capacity: | 30pc/month |

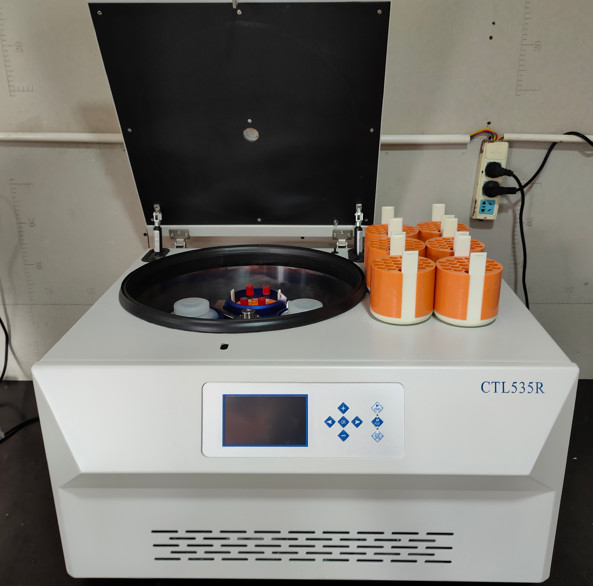

Large Capacity Medical Refrigerated Centrifuge Machine, Blood /Plasma/Serum Medical Refrigerated Centrigue
Technical parameter
| Model | CFL535R | Timing range | 0-999min |
| Maximum speed | 5350r/min | Power supply | AC 220V 50Hz 15A |
| Maximum RCF | 5030×g | Machine noise | ≤55dB(A) |
| Maximum capacity | 3000ml | Dimensions | 620×740×810mm |
| Speed Accuracy | ±20r/min | Net Weight | 150kg |
| Power | 1700W | Chamber diameter | Φ450 |
| Temperature range | -20℃~+40℃ | Temperature accuracy | ±1℃ |
CFL535R Rotor
| Rotor type | No. | Capacity | Max Speed(r/min) | Max RCF(×g) |
| Main machine | CFL535R | 5350 | 5030 | |
| Angle rotor | NO.1 | 12×15ml | 5350 | 5030 |

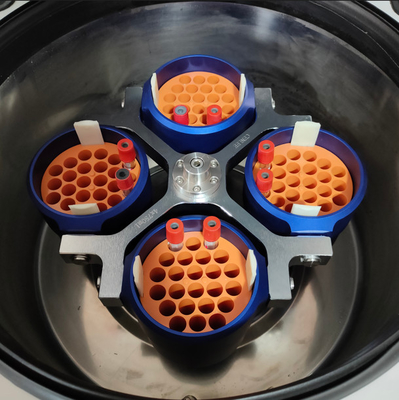

| Swing rotor body | NO.2 | 4×500ml | 4000 | 3040 |
|
Enzyme plate rotor |
4×2×96 well | 4000 | 3040 | |

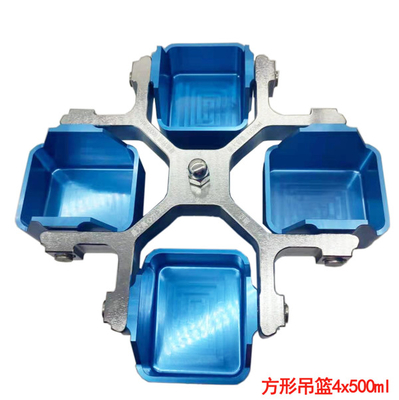

| Square buckets | 4xbuckets | 4000 | 3040 | |
| Round cup | 4×500ml | 4000 | 3040 | |
| Hanging cup | 4×24×5ml (Vacuum tube) | 4000 | 3040 | |
| Hanging cup | 4×37×7ml (Test tubes) | 4000 | 3040 | |

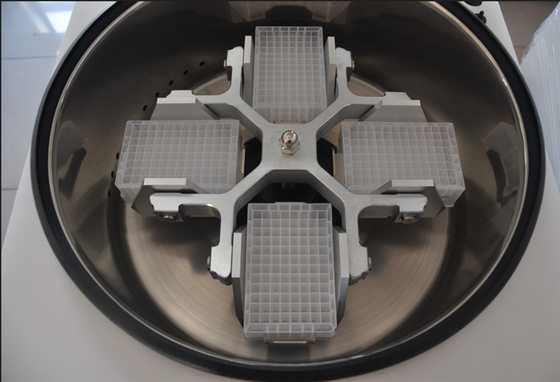

| Enzyme Plate rotor body | NO.3 | 2×2×96 well | 4000 | 2200 |
| Enzyme Plate rotor | 2×2×96 well | 4000 | 2200 | |
| Swing out rotor body | NO.4 | 4×750ml | 4000 | 3500 |
| Round cup | 4×750ml | 4000 | 3500 | |
| Swing out rotor body | NO.5 | 6×250ml | 4000 | 3580 |
| Round cup | 6×250ml | 4000 | 3580 | |

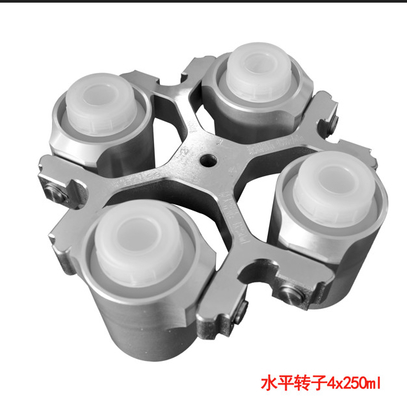

| Swing out rotor body | NO.6 | 4×250ml | 4200 | 3500 |
| Round cup | 4×250ml | 4200 | 3500 |
