Benchtop High Speed refrigerated Centrifuge ultraspeed centrifuge machine

Benchtop High Speed refrigerated Centrifuge ultraspeed centrifuge machine

MOQ: 1 set
Standard Packaging: 3-ply Wooden Case
Supply Capacity: 500 sets per month
Detail Information
Place of Origin
China
Brand Name
CenLee
Certification
CE
Model Number
TGL-16
Model:
TGL-16
Max Speed:
16000r/min
Max RCF:
21532×g
Max Capacity:
90ml
Speed Accuracy:
±20r/min
Temp. Range:
-20℃-+40℃
Temp. Accuracy:
±1℃
Time Range:
0-999min
Power Supply:
AC 220V 50Hz 10A
Noise:
≤55dB
Minimum Order Quantity:
1 set
Packaging Details:
3-ply Wooden Case
Supply Ability:
500 sets per month
High Light:

Microlitre Benchtop Refrigerated Centrifuge

,

50Hz Benchtop Refrigerated Centrifuge

,

20r/Min Accuracy Small Centrifuge Machine

Product Description

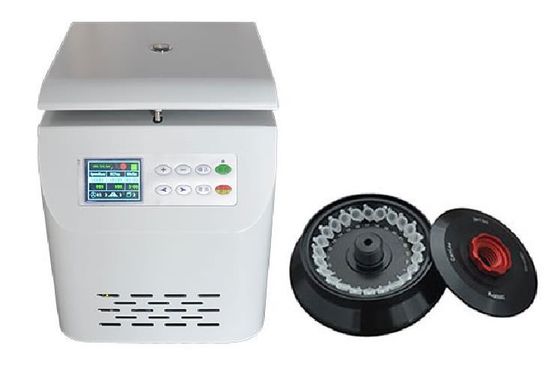

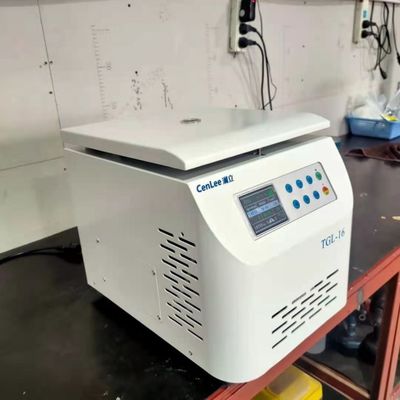

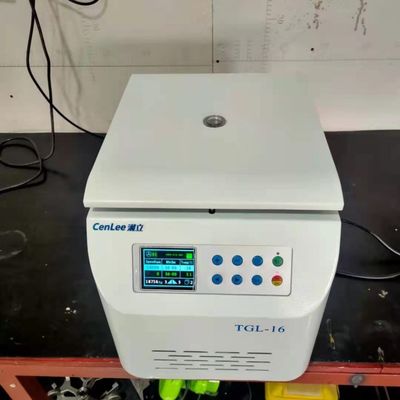

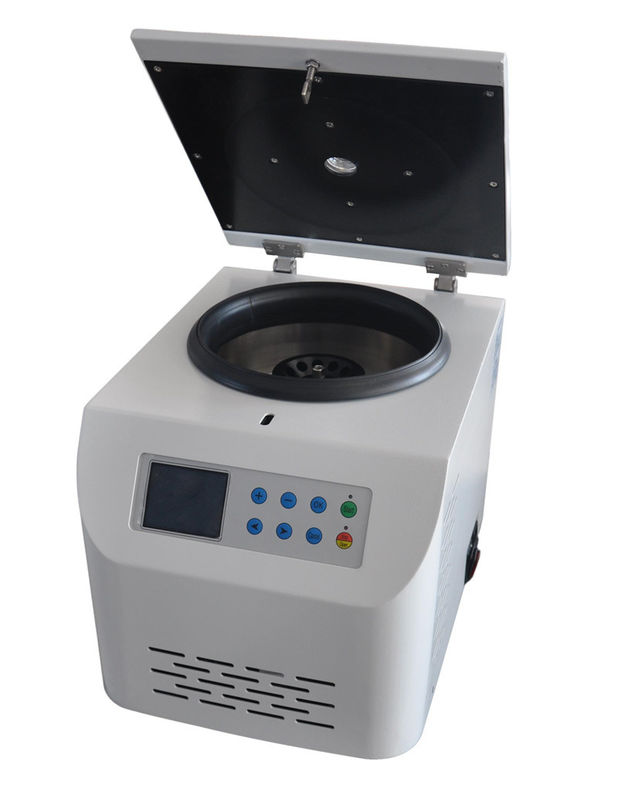

TGL-16 Benchtop High Speed refrigerated Centrifuge ultraspeed centrifuge machine



  • Microprocessor-based controlled with user-friendly operational panel. Frequency converter motor drived for low noise and free maintanance.
  • Easy to read digital display and automatic memory for protocols, easy for the repetitive operation.
  • In automatic RCF/PRM mode, you can set runs to a desired speed or g-force.
  • 9 accelaration and 10 braking rates (0 is for free brake) and 3-level damping system ensure the best seperation result.
  • Liquid seeping prevention with unique rubber isolation gasket firmly seals the motor for protecting motor and electronic components.
  • Low-noise output lower than 55dB offer you a comfortable reseach environment.
  • Powerful refrigeration system with imported environmental refrigerants ensure high temperature control accuracy. Pre-cooling design can give fast cooling for the chamber.
  • Designed with various protection devices for maximum operational safety, such as stainless steel chamber, lid lock system, over-speed detection, over-temperature detection and so on.
Specifications
Benchtop High Speed Medium Capacity Refrigerated Centrifuge, with rotor
Model TGL-16
Max.Speed (r/min) 16000
Max. RCF (x g) 21532
Max. Capacity (ml) 90
Control Microprocessor
Drive AC Frequency Conversion Motor
Accel/Decel Rates 10/10
Speed Range (r/min) 300-16000
Speed Control Accuracy (r/min) ±20
Temp. Set Range (°C) -20 to +40
Temp. Control Accuracy(°C) ±1
Timer Range(min:sec) 0-99:59
Noise (dB) ≤ 55
Power Supply V (Hz) 220/110 (50/60), 10A, single phase
Dim. (W x D x H) mm 295 x 400 x 360
Weight (kg) 36
Rotors
Rotor Type Rotor No.

Max. Capacity

(place x ml)

Max. Speed

(rpm)

Max. RCF

(x g)

Tube Size

(Range, ml)

Adapters for smaller tubes
Fixed Angle Rotor 1 24 x 1.5/2.2 15000 21532 0.5-2.2 Available
Fixed Angle Rotor 2 12 x 1.5/2.2 16000 17800 0.5-2.2 Available
Fixed Angle Rotor 3 18 x 5 12000 10142 0.5-5 Available
Fixed Angle Rotor 4 4 x 8 x 0.2mlPCR strip 15000 13800 0.2 Unavailable
